Mx-Suite™ is Testing Made Smart

Features & Benefits


One test Tool that Has it all

Mx-Suite™ is simply the most comprehensive platform for automated embedded software verification and validation. A picture is worth a thousand words, so Mx-Suite uses intuitive graphics to streamline your engineering development efforts. Because of Mx-Suite’s layered architecture, the same tests are reusable at any stage of the development process: Model-in-the-Loop, Software-in-the-Loop, or Hardware-in-the-Loop.

Easy Integration

Mx-Suite connects to most types of test and measurement equipment right out of the box, and Danlaw can quickly customize Mx-Suite to support new interfaces. Mx-Suite also seamlessly integrates with popular ALM systems such as IBM Rational Doors, Polarion QA, Atlassian Bamboo, and Jenkins.

Tests Throughout the Design and
Development Lifecycle

Mx-Suite is flexible enough to test your implementation during modeling, rapid prototyping, and software development, as well as during bench testing of physical embedded controllers.

What You Can Test With Mx-Suite

Easily Meet ISO 26262 Safety Requirements for Test

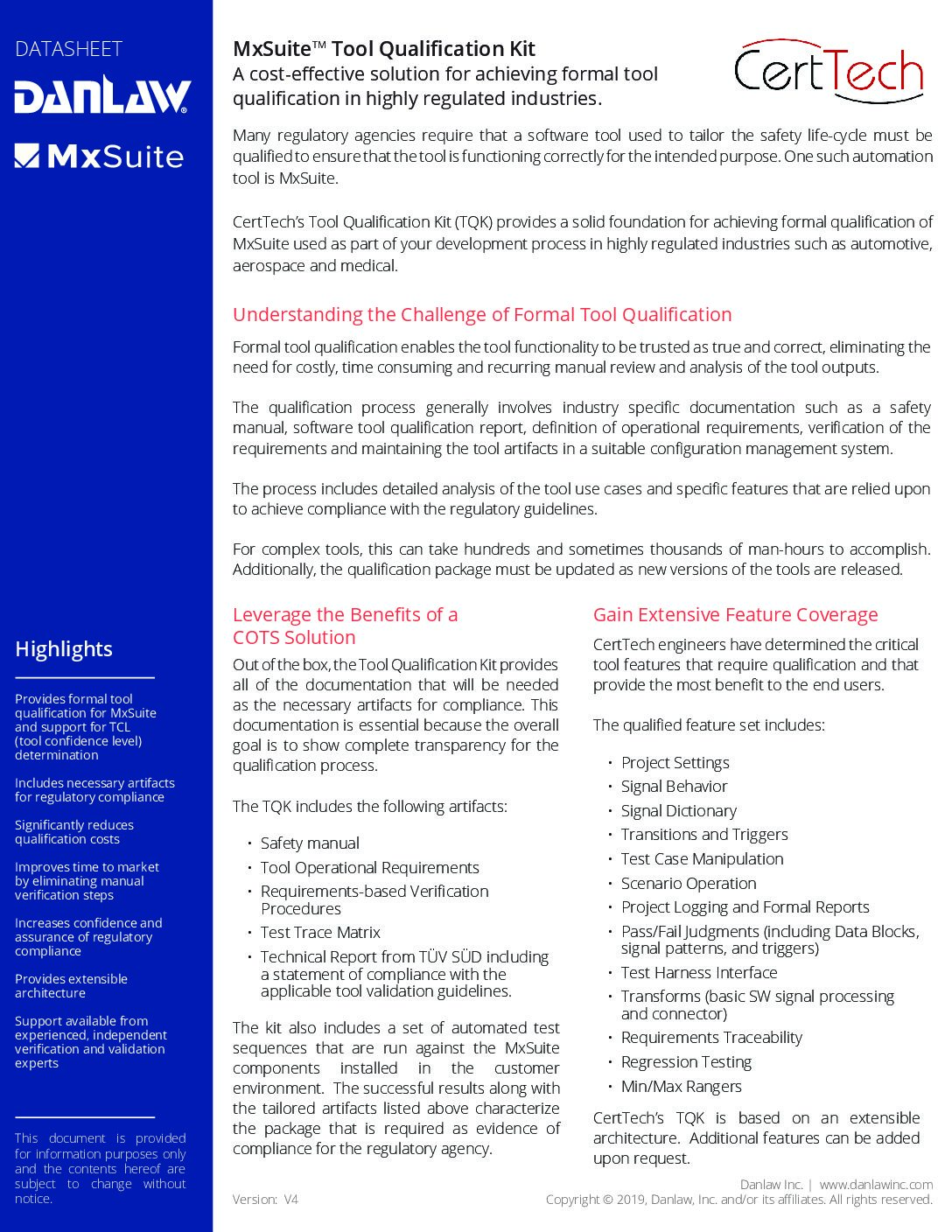

Mx-Suite incorporates model and structural code coverage tools and requirements traceability to help ensure your tests cover your ASIL requirements. A tool qualification kit is available, approved by TUV SUD for ISO 26262 process requirements.

Jumps in at any stage of the process

Regardless of where you are in development, Mx-Suite can test your implementation so you save time and money by testing early and testing often.

Creates test summaries that are easy to read

Reports are formatted using a drill-down approach so managers can see overall test summaries and engineers can find the root symptoms of successful or failed runs.

Shows a picture of where a test failed

Detailed test reports display failures as a sequence of inputs and outputs over time so there’s no confusion. Data tables and timing charts support detailed analysis by your development team.

Tests your component in a virtual vehicle

Mx-Suite™ allows you to simulate a vehicle in a completely virtualized environment or with commonly available hardware. Cost-effectively test at a subsystem or system level.

Stores test cases and logs for later re-use

Replay Test stimuli and results to localize root causes of failure.

Rapid Test Creation and Maintenance

Save valuable time by defining expected behavior with Mx-Suite’s visual test creation interface.

Mx-Suite Solutions

Mx-PLT

Reduce Physical Layer Test Time From Weeks to Hours
When you add Mx-PLT to Mx-Suite, you will save time and energy on CAN network physical layer tests and LIN conformance tests and get your components to production faster.

  • Arrives preconfigured and calibrated
  • Reduces crunch-time conformance testing
  • Generates reports formatted to OEM standards
  • Enables quick issue detection and resolutions
Mx-PLT Product Sheet

Mx-DSRC

Design, Test, and Certify your DSRC Module
Danlaw offers a complete system for DSRC testing and V2X pilot certification.

  • Test for compliance requirements
  • Test for RF quality
  • Test for interoperability
  • Test integration with other vehicle systems
Mx-DSRC Product Sheet

In-Circuit Emulator

Model-in-the-loop to Processor-in-the-loop
Linking MathWorks Simulink models and Lauterbach TRACE32 emulators, Mx-Suite provides the same test tool and the same test cases in both environments allowing equivalence between the model and its generated C code to be easily demonstrated. This eliminates creating a second suite of tests for the target environment. Further, the effort in achieving ISO 26262 compliance is noticeably reduced:

  • By comprehensively testing the generated code, the need to qualify the code generator for ISO 26262 is eliminated.
  • According to the ISO 26262-6 Road Vehicle – Functional Safety specification “the test environment for the software unit testing shall correspond as closely as possible to the target environment.” Through back-to-back testing, the effort devoted to testing on the target is virtually eliminated.
  • ISO 26262-6 recommends performing code coverage measurements. Mx-Suite leverages Danlaw’s RapiCover code coverage tool to transparently automate the capture of MC/DC code coverage statistics, while tests are executing on the TRACE32 emulation target platform.
Back-to-back Testing Datasheet

AUTOSAR

From Code to the Test Environment

AUTOSAR software components (SWCs) can be quickly and efficiently tested with little or no programming experience. Mx-Suite automatically creates a test harness in just a few steps by importing I/O information from an AUTOSAR Architecture tool (ARXML files). After adding the source code, a fully configurable PC platform is ready to build and perform functional testing of the SWCs.

  • Allows simple equivalency testing when migrating to an AUTOSAR architecture or when using MBD
  • Includes an automatically configured Window-based AUTOSAR OS
  • Generates a fully configured RTE ready to link to your SWC software
  • Supports testing of individual software components and compositions
  • Allows the tester to manipulate all the inputs to the SWCs including function call return values
AUTOSAR Connector Datasheet

learn About Key Features in Mx-Suite

Detailed information about Mx-Suite’s intuitive graphics and test case reusability, key features, such as integration to AUTOSAR applications, and industry applications is available.

Browse Download Center

Ready to Test Smarter?

Use the test tool that has it all to meet your requirements faster, with less cost, and higher quality.
